The Universal Guide to All-on-X Full-Arch Rehabilitation: Techniques, Tips & A Case Study

Author: Henry Chen                           Date: December 6, 2025

For dentists and clinics considering full-arch implant rehabilitation, the All-on-X concept has revolutionized patient care. But achieving predictable, aesthetic, and long-lasting results requires precise planning, execution, and collaboration with a skilled dental laboratory.

This guide breaks down key clinical and technical considerations to ensure your next All-on-X case is a success—and highlights how partnering with a specialized lab makes all the difference.

1. Is Your Edentulous Patient a Candidate for All-on-X?

The All-on-X protocol isn't a one-size-fits-all solution. Ideal candidates typically present with:

• Severe bone loss in the maxilla or mandible, where traditional dentures are unstable.

•  Compromised dentition with a hopeless prognosis for most remaining teeth.

• Adequate bone volume for the strategic placement of 4-6 implants per arch, often utilizing tilted posterior implants to avoid critical anatomy.

• Good systemic health and commitment to meticulous oral hygiene.

• Realistic expectations regarding the process, cost, and maintenance.

A thorough CBCT analysis and diagnostic wax-up are non-negotiable first steps to assess suitability.

2. Navigating All-on-X Final Prosthesis Designs: A Lab’s Perspective

Choosing the right final restoration design is crucial for function, aesthetics, and maintenance. Here’s a breakdown of common options:

a.Overdenture on Implant Bar: A removable prosthesis clips onto a milled titanium bar.

Pros: Excellent retrievability for hygiene; easier to manage soft tissue; cost-effective.

Cons: Less rigid feel; potential for wear on attachments; bulkier design.

b.Ti-Base Integrated Zirconia Bridge: Hybrid prosthesis where zirconia is fused to multiple titanium bases.

Pros: Extremely strong and durable; excellent tissue contact and emergence profiles; screw-retained for retrievability.

Cons: Higher cost; requires precise passive fit; less repairable than other options.

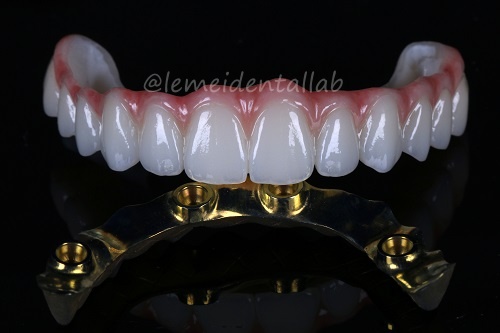

c.Ti-Bar Integrated Zirconia Bridge: A milled titanium bar framework is veneered with layered zirconia or composite.

Pros: Combines the strength and passive fit of a milled bar with customizable aesthetics.

Cons: Can be technique-sensitive for the lab; potential for veneer material chipping.

d.Full Zirconia Bridge (Monolithic or Layered): A fully contoured zirconia prosthesis.

Pros: Superior aesthetics and strength; highly biocompatible; excellent for bruxers.

Cons: Heavier; requires significant reduction space; monolithic versions lack layered vitality.

e. Malo Bridge with Individual Zirconia Crowns: A screw-retained titanium framework with cemented individual zirconia crowns.

Pros: Allows for easy replacement of a single unit; classic, proven design.

Cons: Cement can be a hygiene concern; more components and potential complications.

The Lab’s Role: A expert lab collaborates with you to select the best design for the specific case, considering biomechanics, aesthetics, hygiene access, and patient factors.

3. The Critical Role of Immediate Loading

Following implant placement, immediate provisionalization is a cornerstone of the All-on-X protocol. Its benefits are profound:

• Patient Satisfaction: Leaves the clinic with fixed, functional teeth immediately.

• Tissue Guidance: The provisional acts as a blueprint, sculpting the peri-implant gingival contours for the final restoration.

• Occlusal Validation: Allows refinement of VDO, lip support, and phonetics in a provisional material before final fabrication.

• Osseointegration: Controlled, micro-flexible loading can stimulate bone healing.

4. Why a PMMA Provisional Bridge is Essential

The immediate restoration should be a screw-retained PMMA bridge. PMMA (polymethyl methacrylate) is the ideal material because:

• It is strong enough for immediate function yet has some flexibility.

• It is easily adjustable and relineable chairside.

• It generates less stress on the integrating implants than a rigid final material.

• It serves as the perfect "test drive" for the final prosthesis's form and function.

5. Capturing the Perfect Fit: The Importance of Precise Impressions

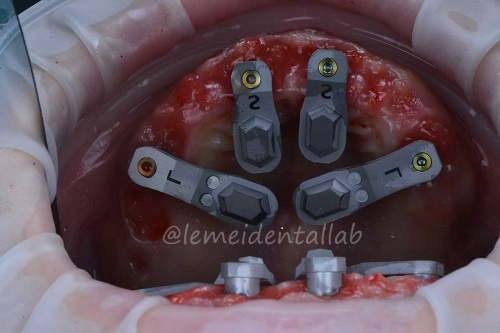

An accurate final impression is the foundation of a passive-fitting framework. Correct bite relationship records are paramount. We highly recommend utilizing specialized tools like the TruAbutment ioConnect™ Scan System and Shining3D IPG tool.

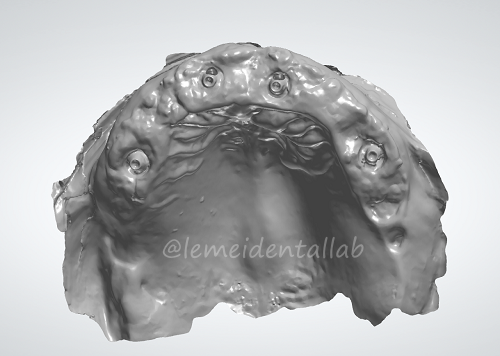

These systems use scan bodies designed for optimal digital capture, facilitating a highly accurate digital workflow. It minimizes errors in transferring the 3D implant position to the lab, ensuring the passive fit that is critical for long-term success.

6. The Art of the Gingival Shade

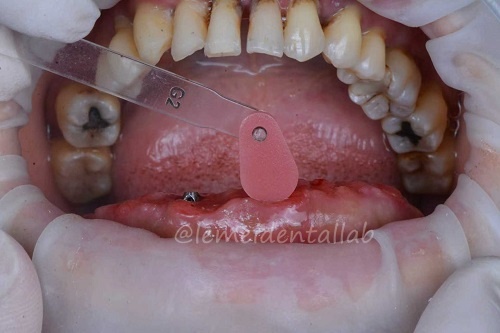

For natural aesthetics, especially in high-smile-line patients, matching the gingival portion of the prosthesis to the natural soft tissue is vital. Don't overlook this step during shade taking. Provide clear photos and specify gingival shade guides (e.g., VITA Gingival, GC Gummy) to your lab. A meticulous lab will hand-characterize this area for a seamless transition.

7. Case in Point: A Recent All-on-X Transformation

A recent All-on-4 case showcasing a Ti-Base Integrated Zirconia Bridge in the maxillary. Note the natural emergence profiles and gingival harmony achieved through close clinic-lab collaboration.

Partner with a Lab That Masters the All-on-X Workflow

Executing a flawless All-on-X case is a symphony of surgical skill, prosthetic planning, and technical laboratory excellence. From designing the surgical guide to fabricating the PMMA provisional and the final masterpiece, every link in the chain must be strong.
